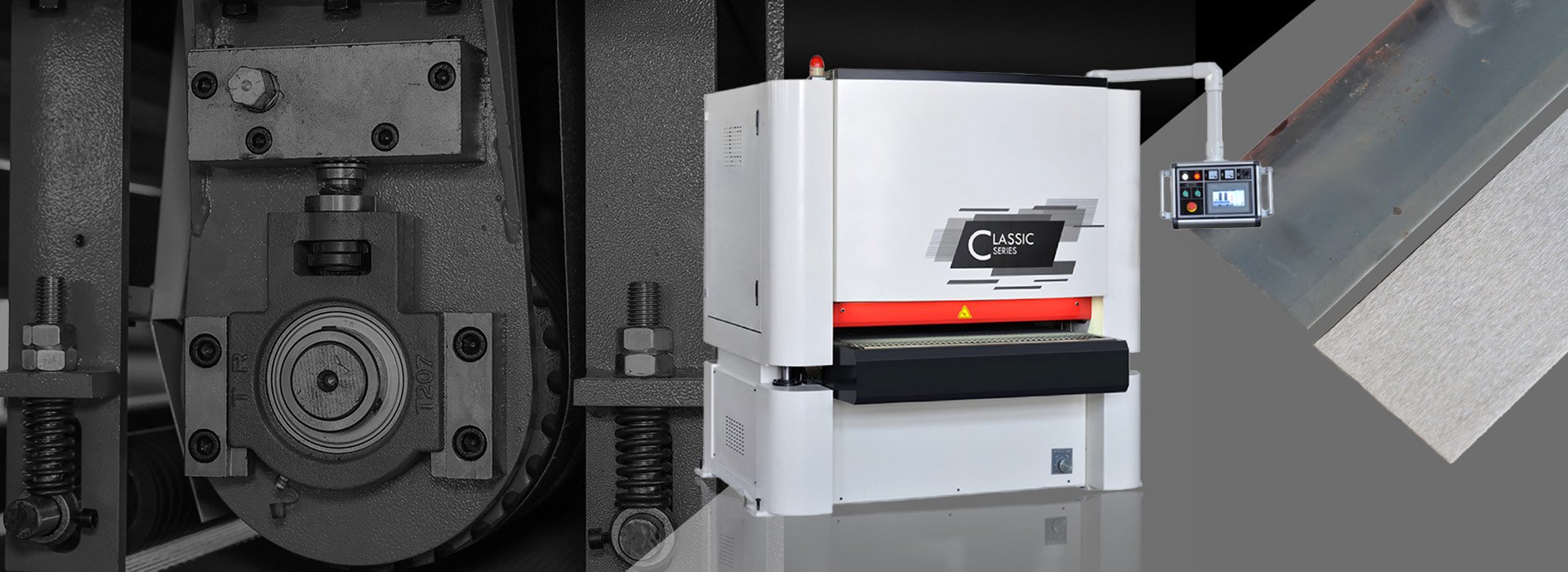

Industrial Dry Deburring Machine for Laser & Plasma Cut Parts
- All-in-One Pass – automatic deburring, rounding, and finishing, all in one pass.
- Heavy-Duty Contact Roller – effortlessly helps you remove thick oxide layers and slag.
- Flexible Brush System – with 360° uniform rounding that protects your metal surface.
- Vacuum system – holds parts as small as 50mm securely in place.
- High-Grade Nitrile Rubber – the wear-resistant conveyor belt can help extend your equipment’s lifespan.
- Variable Frequency Drive – precise speed control that is widely applied for different metalworking processes.
The Dry Processing Advantage: ARMPRE Dry Deburring Machine
How does it work?
Dry deburring machine Using high-speed abrasive belts to flatten the sheet metal surface, the multi-directional Rotary Brush make you sheet metal parts with rounded edges
What are the benefits?
Replacing slow manual grinding, the dry deburring machine lowers your labor costs and ensures uniform quality, safely running with an integrated dust extractor.
With an automated conveyor system, a dry deburring machine eliminates sharp edges, heavy slag, and dross from cut metal sheets, with no need water cooling.
Specifically designed for processing metals such as steel, stainless steel, and aluminum, the ARMPRE dry deburring machine is equipped with a dust removal system, providing you a simplified deburring process without the need for water treatment, filter paper, or rust inhibitors. The parts processed by the dry deburring machine are clean and dry, ready for immediate welding or painting, eliminating the high labor costs associated with manual grinding and deburring.
With an automation efficiency of up to 10 meters per minute, one ARMPRE dry deburring machine can replace 3-5 manual operators. By addressing secondary corrosion and moisture issues in carbon steel parts, the wide-belt dry sander ensures your parts remain completely dry, preventing flash rust.

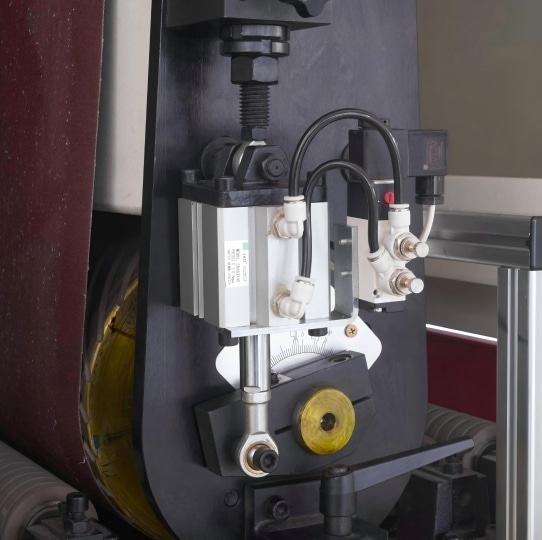

Constant pressure control and precise head height adjustment guarantee you high-volume laser-cut parts processing capacity, resolving inconsistent workpiece surface finish issues. Capable of handling parts with a maximum thickness (0.5 mm – 150 mm), the dry deburring machine is suitable for various materials, small-batch, high-variety production applications, including heavy machinery for removing large amounts of slag from thick plasma-cut plates and precision machining of small, precision metal casings in the electronics industry.
Types of Dry Deburring Machines

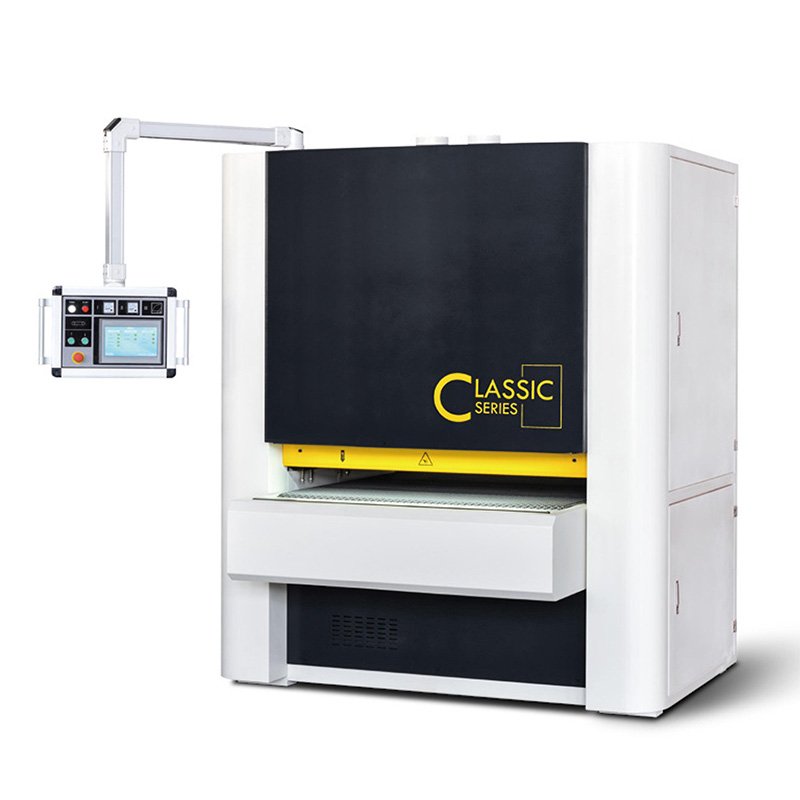

A compact, precision machine suitable for small to medium-sized metalworking operations, the 630mm dry deburring machine is ideal for specialized machining workshops and manufacturers.

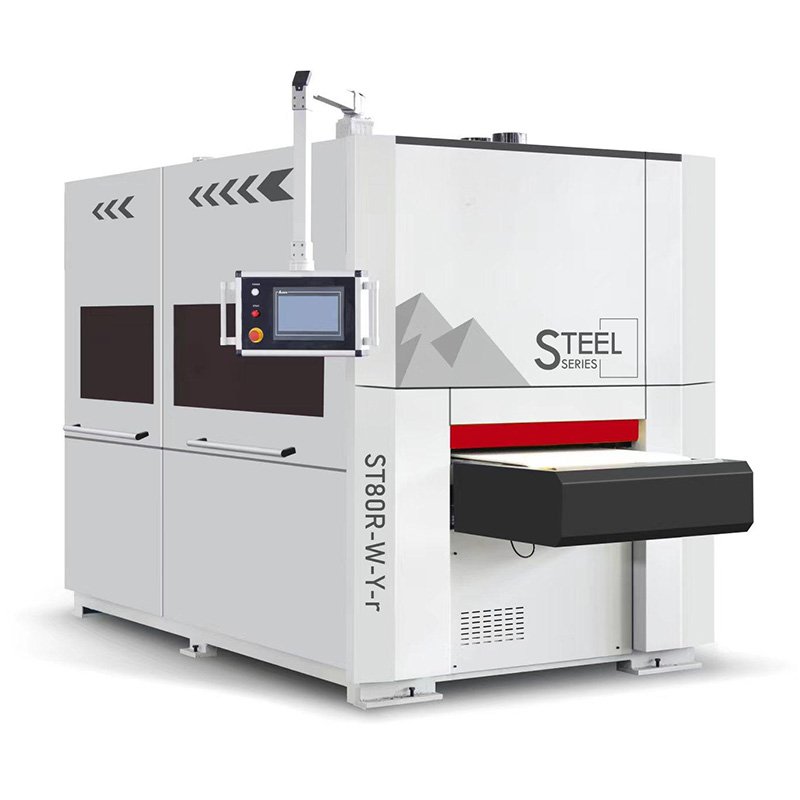

The 1000mm dry deburring machine perfectly balances capacity and cost-effectiveness. It can meet the processing needs of most standard-sized sheet metal in industrial machining.

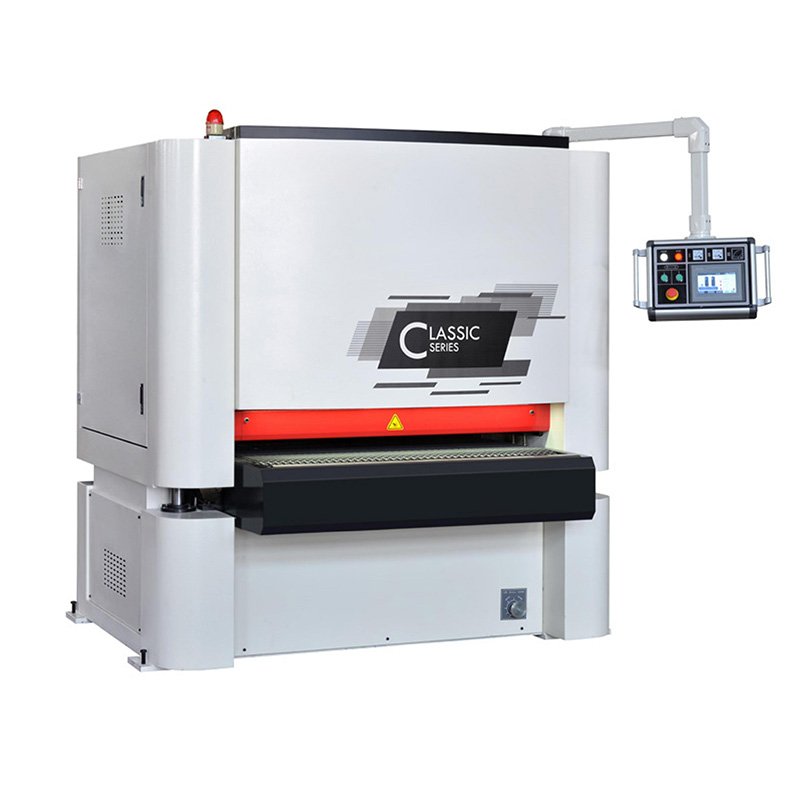

A high-capacity solution for large-scale industrial production, the 1300mm dry deburring machine can withstand the most demanding environments and is ideal for large sheet metal processing.
Optional Accessories For Deburring Machine
Overview Machine Processing Configurations
Armpre series metal deburring machines to remove burrs, round edge, finish, remove laser oxide ，remove surface rust ， remove slag from welding or laser cutting.
Pre-deburring
Deburring
or No.4 Finish
or Hairline Finish
or Polishing
Pre-deburring
Deburring
No.4 Finish
or Hairline Finish
and Polishing
Pre-deburring
Deburring
No.4 Finish
or Hairline Finish
Edges Rounding
Deburring
Edges Rounding
No.4 Finish
or Hairline Finish
or Polishing
Why Choose Us
Engineering excellence and turnkey solutions designed to optimize your production efficiency.
Send us your workpiece; we deliver high-precision sample parts for your evaluation.
Join our global distribution networkand, unlock industrial-grade growth.
Expert engineering assistance from pre-sale selection to on-site commissioning.
Cloud-based troubleshooting and remote software updates for zero downtime.
Genuine replacement parts and custom tooling shipped quickly to secure production.
Access OEE analysis, cycle time estimates, and tailored production solutions.

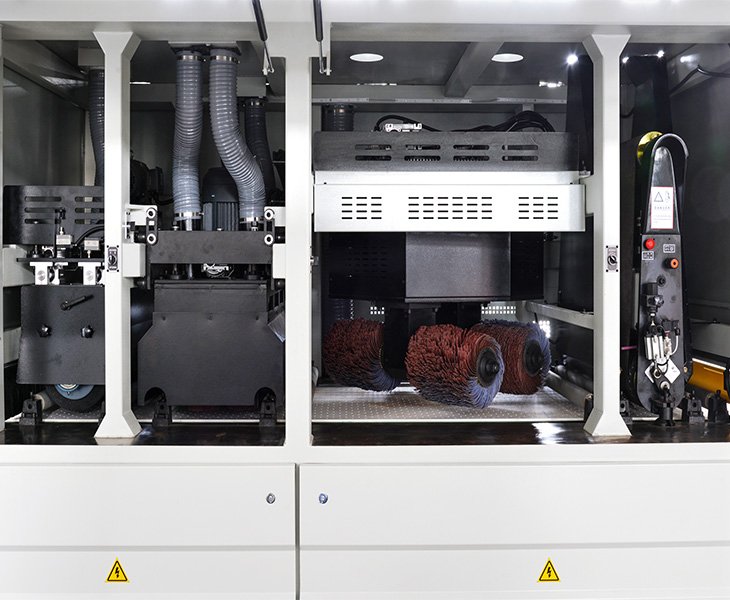

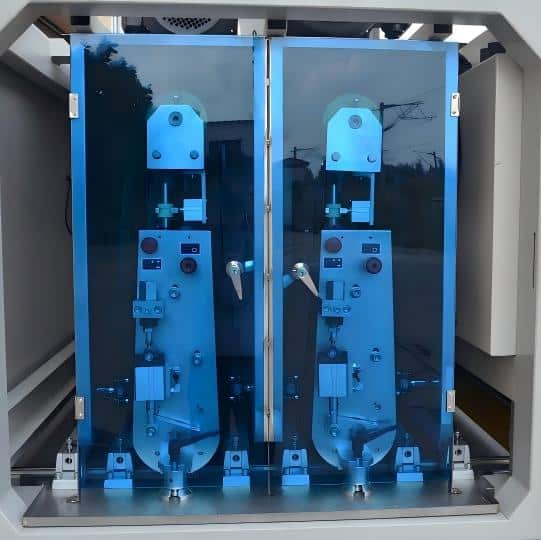

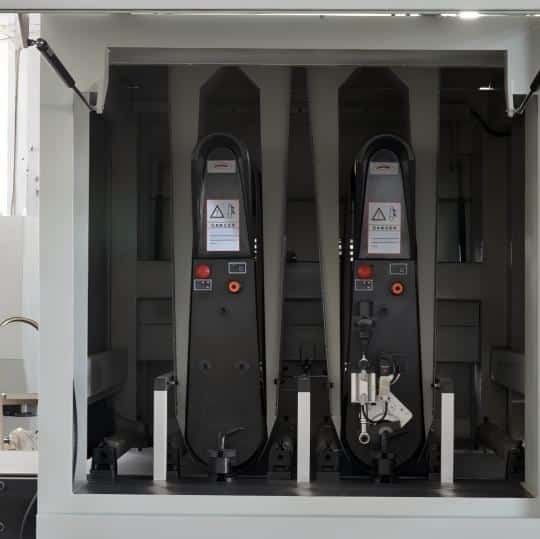

Versatile Modular Head Configuration for Multi-Tasking
Utilizing a modular design, ARMPRE dry deburring machine integrates the sanding belt and rotary brush within the same chassis. Whether you require powerful deburring of thick plates or fine rounding of precision laser-cut parts, our dry deburring machine can be configured and processed to meet your needs. This “all-in-one” solution not only saves you space and costs but also significantly improves your production efficiency and facilitates future production line expansion and additional metal surface treatment requirements.

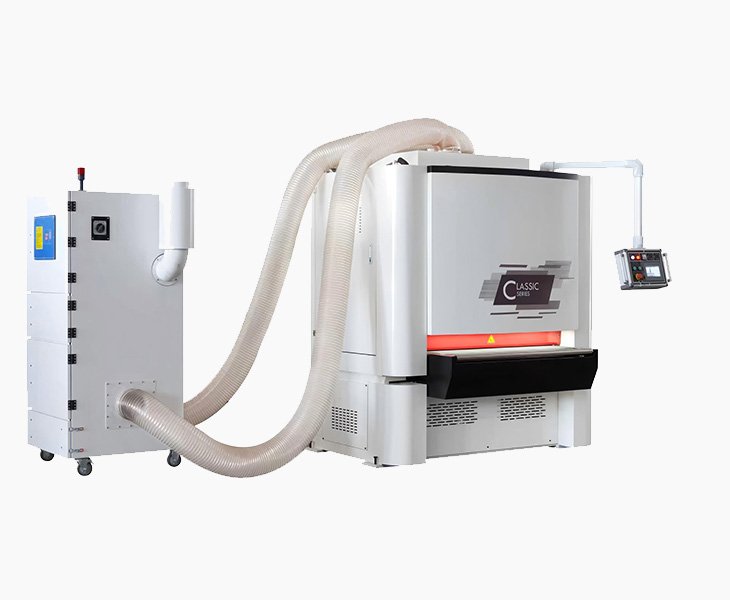

Precision-Engineered Dust Extraction and Safety Integration
Unlike wet deburring, dry deburring generates a large amount of particulate matter and dust. To maximize dust recovery, the dry deburring machine is designed with a precision-engineered dust collection system. Each sanding and brushing unit is equipped with a large-capacity suction port to prevent dust contamination, ensuring the safety of both operators and internal components. Committed to creating a clean working environment for you, the dry type is always your best choice.

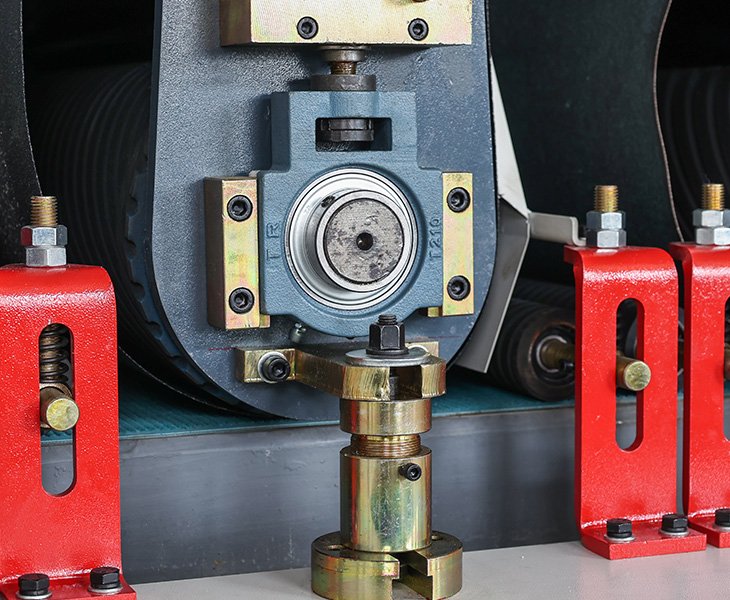

Rapid Tool Change and Minimum Downtime Design

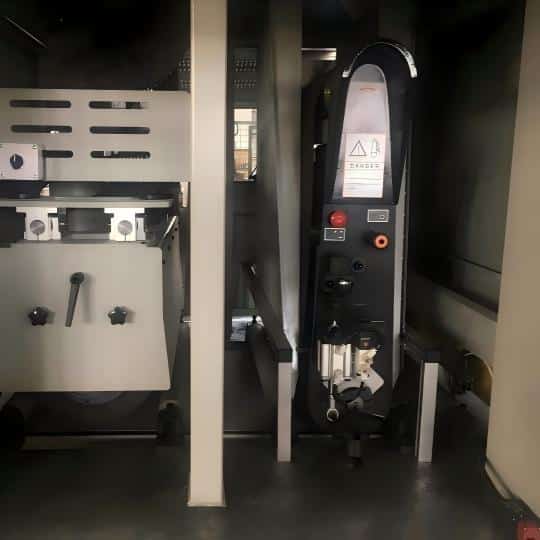

To meet your needs for maximizing metal handling and minimizing downtime, the ARMPRE dry deburring machine features a “rapid tool change” design, allowing you to change sanding belts and brushes in under three minutes. With minimal training, even novice operators can quickly and accurately modify and set up the system and precision settings.
Resource Download
Quem alienum reprimique at duo. Mea elit denique complectitur an, vis ullum quaestio assueverit in. Cum no accusam philosophia.
Quem alienum reprimique at duo. Mea elit denique complectitur an, vis ullum quaestio assueverit in. Cum no accusam philosophia.
Quem alienum reprimique at duo. Mea elit denique complectitur an, vis ullum quaestio assueverit in. Cum no accusam philosophia.
See Our Working Video of Machine in Action
More About Our Company
- Characteristics Key Advantages
- Exhibition Gallery
- Factory Gallery
- Dry Deburring Machine vs Wet Deburring Machine
- Comparison of Armpre Deburring Machine With Other Leading Brand
| Characteristics | Values |
| Working width available | 30″/800 mm-40″/1000 mm-50″/1300 mm-60″/1600 mm |
| Min.Working length | 2”×2″/50 mmx50 mm |
| Working thickness | 0-4″/0-100 mm |
| Working materials | carbon steel, stainless steel , aluminum, copper, titanium |
| Max speed | 195 in/min/5000 mm/min |
| Voltage | 480V/3 ph |
| Frequency | 60 Hz |
| Working table structure | Vacuum/Magnetic as Standard |
| Controller | PLC |
| Sand Belt Mesh | #60/#80/#120/#180/#240/#320 |
| Dust collector | Dry/Wet Dust collector |
| Types | Dry Deburring Machine | Wet Deburring Machine |
| Operational Feature | Low to Moderate Investment: highly cost-effective setup. | Higher Investment: Requires pumps and filtration tanks. |
| Dust & Fire Safety | Requires a Dedicated Wet Dust Collector: For aluminum/titanium fines. | Inherently Safe: Water neutralizes sparks and captures dust. |
| Material Flexibility | Limited: Thorough cleaning required between steel and aluminum runs. | High: Flushes dust instantly for mixed-alloy processing. |
| Part Conditioning | Dry and Ready: Parts emerge warm, ready for painting or assembly. | Requires Drying: Needs inline anti-rust dosing + drying oven. |
| Abrasive Belt Life | Standard: Susceptible to loading (clogging) on oily or gummy sheets. | Extended (+30%): Water washing prevents loading and cools grit. |
| Feature / Specification | ARMPRE Dry Deburring Type | Timesavers 1200 Series | Loewer SwingGrinder | Fladder 200 Gyro |
| Type & Feeding | Automated Through-Feed (VFD speed control) | Automated Through-Feed (Flat-belt conveyor) | Manual / Articulated Arm | Automated Through-Feed (Orbital spindles) |
| Aggregate Technology | Wide contact roller + 4 groups of flexible brushes | Single/Dual head (Wide belt or single brush) | Single disc grinder (Dual rotating discs) | Orbital gyro spindles (Rotating abrasive cylinders) |
| Max Processing Width | 630 / 1000 / 1300mm (Customizable up to 1400+) | 600 / 900mm (Standard narrow to mid-range) | Unlimited length (Restricted by table width) | 1000 / 1300mm (Wide-capacity panel frame) |
| Thickness Range | 0.5 – 100 mm | 0.5 – 50 mm (Standard mid-range plate) | Varies by hand positioning (Typically thick components) | 0.5 – 20 mm (Thin-gauge sheet panels) |
| Min Part Size | 50 × 50 mm (Vacuum absorption) | ~150 × 150 mm (Requires custom fixtures) | Varies (Requires manual clamping) | ~200 × 200 mm (Requires sufficient surface area) |
| Core Processing Focus | Heavy slag removal, surface drawing, oxide scaling, and 360° edge rounding | Light deburring, basic scratch removal, surface calibration | Flexible spot-deburring for small batches | Precision edge finishing, contour blending |
| Material Capability | Universal: Carbon steel, stainless steel, aluminum, copper, zinc plate, etc. | Dedicated: Typically separated into steel-only or non-ferrous lines | Flexible (Easy to swap discs manually) | Sensitive materials: Aluminum, high-end thin stainless steel |
| Investment & Consumable Cost | Highly cost-effective, low energy consumption, standard open-market consumables | Moderate entry pricing, expensive proprietary belt replacements | Low initial cost, extremely high labor cost per part | Premium price tag, proprietary flexible brush components |
What Is a Dry Deburring Machine
How does it work?
Dry deburring machine Using high-speed abrasive belts to flatten the sheet metal surface, the multi-directional Rotary Brush make you sheet metal parts with rounded edges
What are the benefits?
Replacing slow manual grinding, the dry deburring machine lowers your labor costs and ensures uniform quality, safely running with an integrated dust extractor.
With an automated conveyor system, a dry deburring machine eliminates sharp edges, heavy slag, and dross from cut metal sheets, with no need water cooling.
Precision Edge Rounding for Sheet Metal Parts
The dry deburring machine ensures your sheet metal parts with precision edge rounding by removing razor-sharp borders. It delivers you major benefits:
Better Coating
With uniform deburring and precision edge rounding, the dry deburring machine ensures your paint and powder coatings stick perfectly to rounded edges, without paint chipping and early rust.
Safer Handling
After dry deburring and polishing, you can get your sheet metal parts with smooth edges. They can protect workers from cuts during assembly and prevent parts from scratching each other.
Consistent Quality
Creating identical, uniform edges across the entire part, the deburring machine ensures you perfect assembly fits and a premium finish.
Dry Deburring for Sheet Metal Processing
Modern fabrication needs speed and aesthetic consistency. So if integrated with our heavy-duty sheet metal deburring machine, your processing line can get raw parts into market-ready products in one single pass.
The working process of the dry deburring machine for your sheet metal processing: raw parts, wide belt, slag shaving, disc brushes: 360° edge rounding, finished component.
Why Oxide Removal Matters
The brittle iron oxide layer on the edges from oxygen laser cutting will bring you:
Welding Quality
The impurities cause you porosity and brittle joints.
Coating Adhesion
The paint or powder coating is unstable and will lead to early peeling and rust.
Galvanizing Performance
Blocking molten zinc bonding, the iron oxide layer will cause you immediate corrosion.
Yes. we have made double-sided deburring machine to give you high efficiency deburring solution, No need to turn sheet over.
Based on continuous operation for 8 hours per day, HERMES Abrasive Belt is recommended to be replaced after approximately 8–10 hours. Rotary Brush is recommended to be replaced after approximately 3–6 months. however , that depend on your actual requriement on surface finish.
Our dry deburring machine handles parts from 0.5 mm to 100 mm thick:Ultra-Thin Sheets(≥0.5 mm) Your thin sheets are firmly secured with vacuum system, even for small size 50×50 mm.Heavy Plates (≤100 mm) Our high-horsepower contact rollers can crush your heavy bottom slag easily.
Sure. With multi-head dry deburring station, our dry deburring machine ensures you premium 304 and 316 stainless steel deburring without surface damage. The dry deburring delivers you a flawless, uniform satin or hairline (HL) finish in one single pass.
Yes. It delivers 360° edge rounding and hole deburring.
With 4 rotating brush rollers for 360° omnidirectional finishing, and wide belt removes heavy dross. the filaments sweep deep into internal laser cutouts, punch holes, and slots.
Thoroughly removing all burrs, the deburring machine ensures you uniform deburring and polishing without changing part tolerances or thickness.
No. The dry deburring machine can only be applied to flat sheet metals. Strictly engineered for flat, 2D parts (laser-cut components, stampings, and panels), the dry deburring systems can not process long bars, tubes, or structural profiles.
The dust extraction is critical because it brings you: Explosion Prevention It safely collects highly flammable aluminum and titanium dust to prevent fire risks. Rust Prevention By stopping cross-contamination, your stainless steel won’t corrode. Machine Longevity Trapping aluminum and titanium dust, the dust extraction protects your bearings and electronics from abrasive wear.
Yes, our dry deburring machine can remove sharp burrs, dross, slag from plasma-cutted, laser cutted, flame cutted ,waterjet cutted sheet meal parts and punched parts ,and pressed metal parts in a single pass. For plasma-cutted metal parts with heavy burrs, see our deburring machine for plasma-cutted parts. Materials from carbon steel, stainless steel to aluminum, copper, titanium, and molybdenum.
