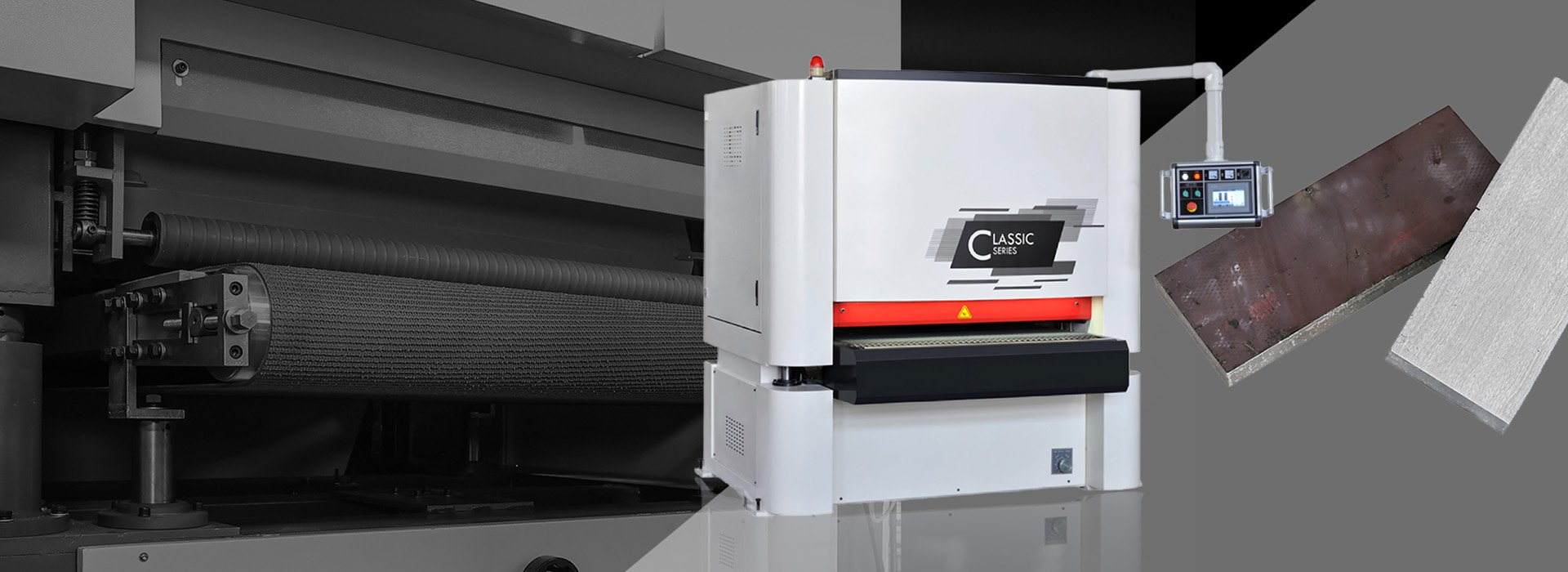

Precision Edge Rounding Machine for Perfect R-Radius Finishing
ARMPRE Edge Rounding Series
- Automatic removal of sharp edges and metal burrs after laser cutting
- Creates consistent edge radius for improved product safety and quality

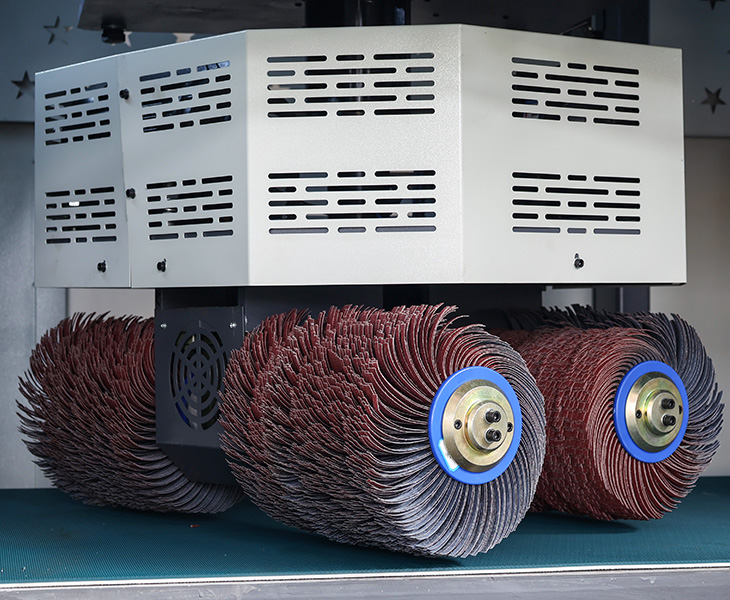

- Universal Rotary Brush System: Cross-rotating brush heads offer you perfect edge finishing.
- Surface Protection: Gentle edge rounding perfectly protects your coatings and films.
- Stable vacuum-assisted system can handle Small Part Machining as small as 50mm.
- We understand always manufacturer trust on Timesaver for its consistency, we Armpre have been focusing on supplying equal technical service as per Timesaver
Why Choose ARMPRE Edge Rounding Machine
- Manufacturing Experience
- Quality Control System
- Engineering Support
- Customization Capability
- Global Export Support
Choose The Right Edge Rounding Solution
1 Edge Rounding for Laser Cut Parts
Remove sharp edges, burrs and oxide layers after laser cutting processes.
2 Edge Rounding For Stainless Steel Fabrication
Achieve smooth and safe edges for stainless steel products and precision components.(内链安排 Stainless Steel Deburring Machine)
3 Edge Rounding For High Volume Production
Automatic edge rounding improves consistency and reduces manual grinding costs. .(内链安排 dry Deburring Machine)
Your Partner in Perfect Edge Rounding Machine Manufacturing
Focusing on metal deburring and chamfering over 20 years, ARMPRE edge rounding machine achieves perfectly deburred, rounded, and finished metal edges for enhanced safety, superior coating adhesion, and operational efficiency.
ARMPRE’s edge rounding machine can process various sheet metal materials, including stainless steel, carbon steel, aluminum, and copper, after laser cutting and stamping, machining, and other processes.
With professional techniques, we provide smooth, consistent, and safe edge finishing for materials with complex shapes and high precision requirements.
With a factory spanning tens of thousands of square meters and a professional R&D team, we offer customized grinding solutions for your workpiece shape, ensuring a beautiful appearance while providing safety and processability guarantees for subsequent assembly, resulting in stable delivery.
Let us be your trusted edge rounding partner!
Working Width Options for Edge Rounding Machine
ARMPRE provides different working widths according to production requirements to sheet metal parts cut by laser, plasma, or punching.

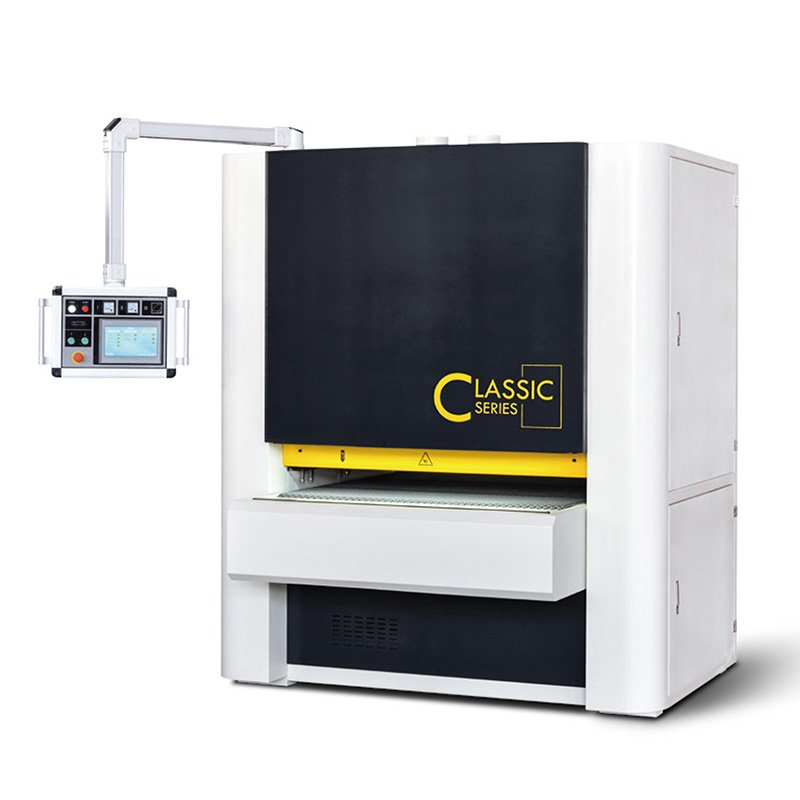

The 630mm edge rounding machine for small and medium sheet metal parts.

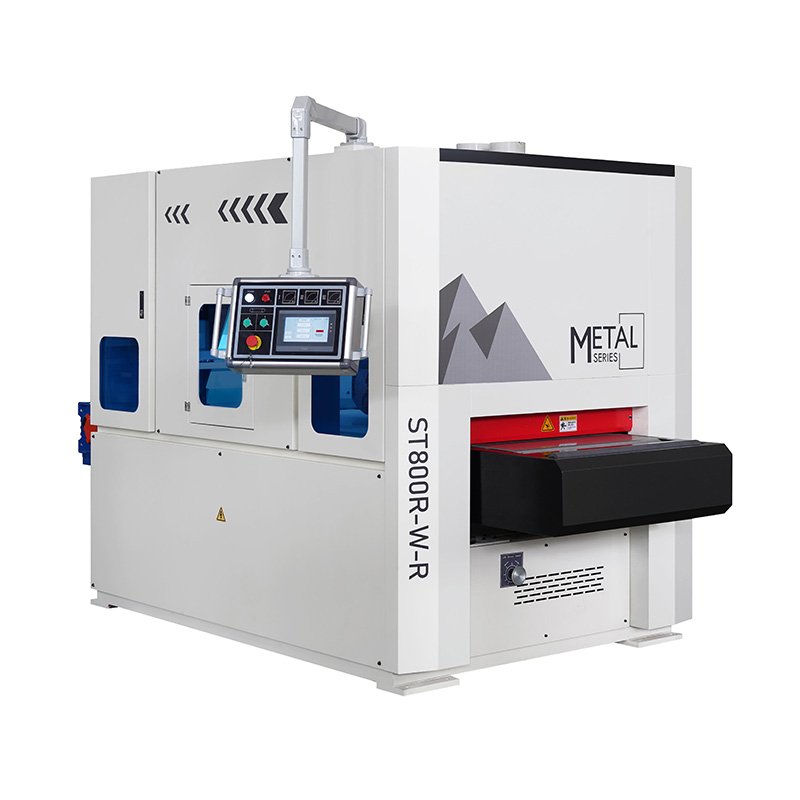

The 1000mm edge rounding machine features a modular die head design, allowing for general fabrication and industrial applications.

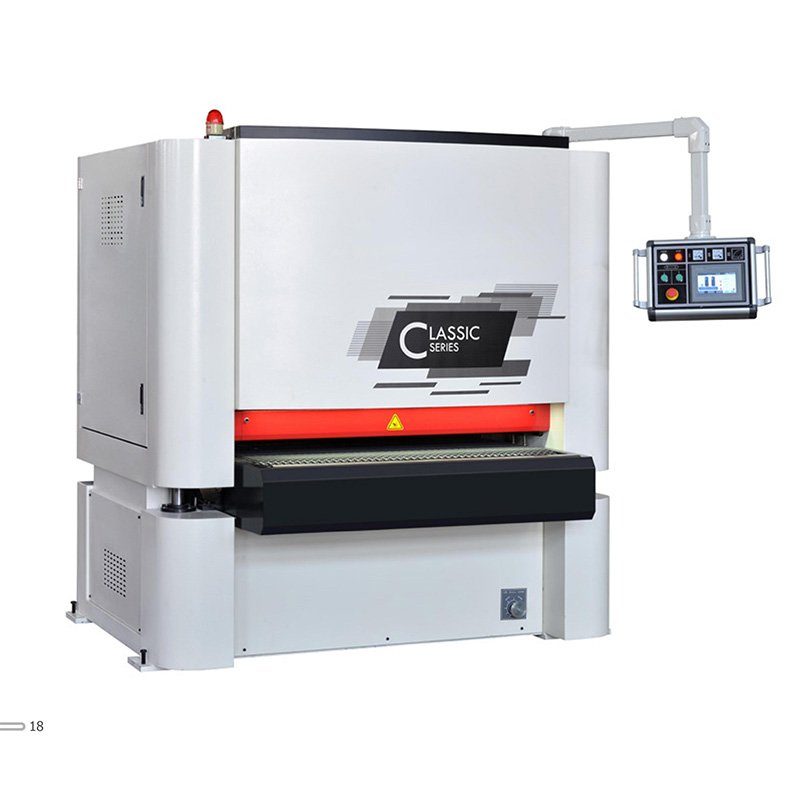

The 1300mm edge rounding machine boasts an exceptionally large chamfering capacity. For large sheet metal plates and high productivity requirements.

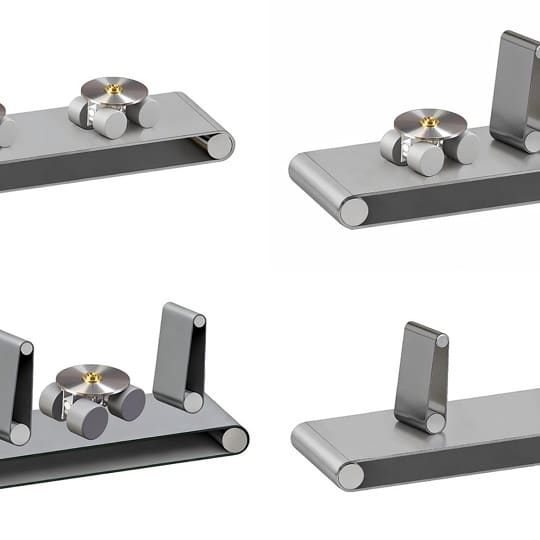

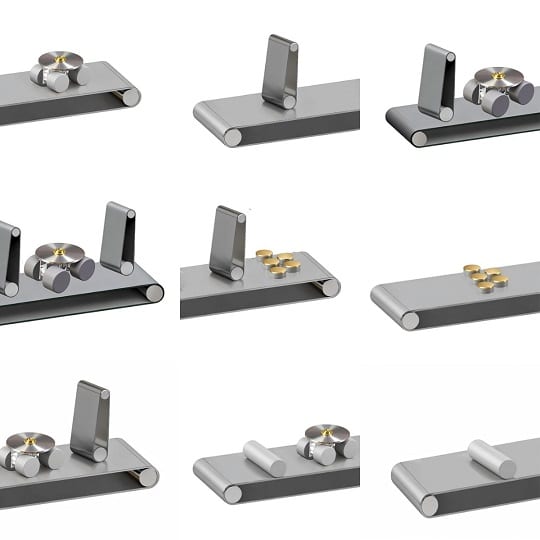

Through Feed Edge Rounding Machine Configuration Options
Armpre series metal deburring machines to remove burrs, round edge, finish, remove laser oxide ，remove surface rust ， remove slag from welding or laser cutting.
Why Choose Us
Engineering excellence and turnkey solutions designed to optimize your production efficiency.
Send us your workpiece; we deliver high-precision sample parts for your evaluation.
Join our global distribution networkand, unlock industrial-grade growth.
Expert engineering assistance from pre-sale selection to on-site commissioning.
Cloud-based troubleshooting and remote software updates for zero downtime.
Genuine replacement parts and custom tooling shipped quickly to secure production.
Access OEE analysis, cycle time estimates, and tailored production solutions.
Edge Rounding Machine for a Perfect Finish
ARMPRE edge rounding machine achieves perfect deburring, rounding, and finishing of metal edges, improving material safety, excellent coating adhesion, and operational efficiency.

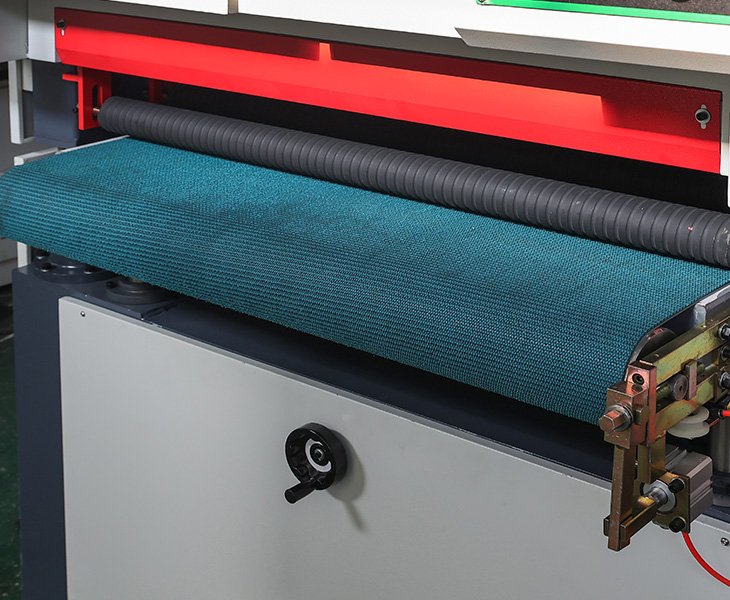

Standard Processing Widths: 630mm, 1000mm, 1300mm
The ARMPRE edge rounding machine can handle sheet materials with widths of 630mm, 1000mm, and 1300mm, including removing slag and oxide layers from stainless steel, carbon steel, aluminum, copper, and other metals, as well as providing chamfering and drawing.

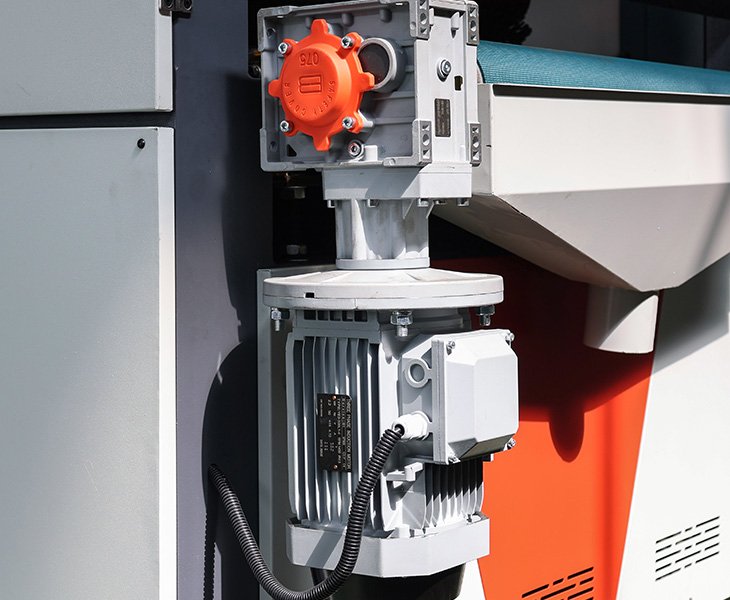

Customized Solutions for Non-Standard Sizes
In addition to processing the three common sheet sizes, the ARMPRE rounding edge machine also offers non-standard customization solutions. The maximum sheet width that can be processed is 3250mm, addressing your needs for processing standard-sized sheets.

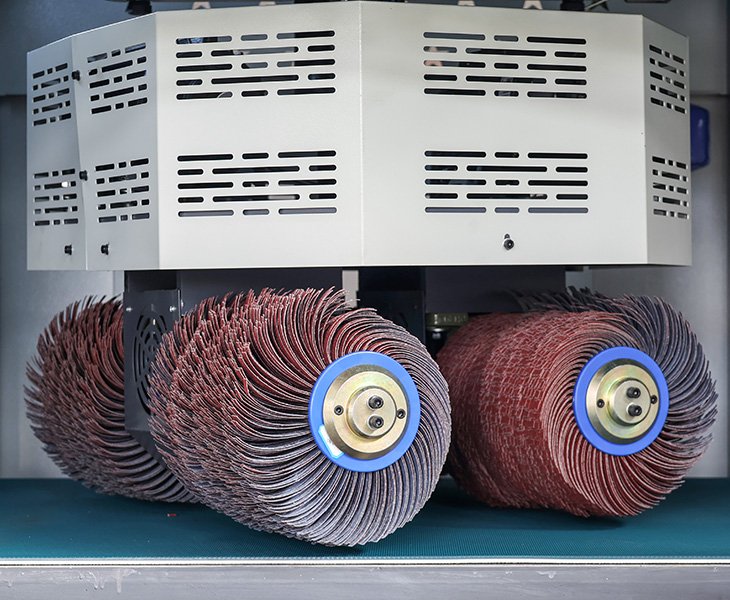

Flexible Configuration with 5 Grinding Units
Our edge rounding machine is equipped with 5 grinding units. These can be freely combined and arranged according to the characteristics of your material and grinding requirements. Sheet processing includes both magnetic and vacuum adsorption options, providing flexible solutions to meet your needs.
Resources & Technical Information
Quem alienum reprimique at duo. Mea elit denique complectitur an, vis ullum quaestio assueverit in. Cum no accusam philosophia.
Quem alienum reprimique at duo. Mea elit denique complectitur an, vis ullum quaestio assueverit in. Cum no accusam philosophia.
Quem alienum reprimique at duo. Mea elit denique complectitur an, vis ullum quaestio assueverit in. Cum no accusam philosophia.
ARMPRE Manufacturing Advantages
Comparison of Product Details
Compare key features to find the right solution for your production needs.
Rust & Oxide Removal, Uniform Deburring & Edge Rounding, Consistent Surface Finish in One Single Pass
Uniform Inner & Outer Edge Rounding, Consistent Surface Finishes for Complex Workpieces in One Single Pass.
Edge Rounding Machine Technical Information
- Technical Specifications
- Exhibition Gallery
- Factory Gallery
- ARMPRE’s Dry Deburring VS Lissmac, ns maquinas, Timesavers , sbm, jonsen
| Characteristics | Values |
| Working width available | 30″/800 mm-40″/1000 mm-50″/1300 mm-60″/1600 mm |
| Min.Working length | 2”×2″/50 mmx50 mm |
| Working thickness | 0-4″/0-100 mm |
| Working materials | carbon steel, stainless steel , aluminum, copper, titanium |
| Max speed | 195 in/min/5000 mm/min |
| Voltage | 480V/3 ph |
| Frequency | 60 Hz |
| Working table structure | Vacuum/Magnetic as Standard |
| Controller | PLC |
| Sand Belt Mesh | #60/#80/#120/#180/#240/#320 |
| Dust collector | Dry/Wet Dust collector |
|
Feature / Specification |
ARMPRE Dry Deburring Type |
Timesavers 1200 Series |
Loewer SwingGrinder |
Fladder 200 Gyro |
|
Type & Feeding |
Automated Through-Feed (VFD speed control) |
Automated Through-Feed (Flat-belt conveyor) |
Manual / Articulated Arm |
Automated Through-Feed (Orbital spindles) |
|
Aggregate Technology |
Wide contact roller + 4 groups of flexible brushes |
Single/Dual head (Wide belt or single brush) |
Single disc grinder (Dual rotating discs) |
Orbital gyro spindles (Rotating abrasive cylinders) |
|
Max Processing Width |
630 / 1000 / 1300mm (Customizable up to 1400+) |
600 / 900mm (Standard narrow to mid-range) |
Unlimited length (Restricted by table width) |
1000 / 1300mm (Wide-capacity panel frame) |
|
Thickness Range |
0.5 – 100 mm |
0.5 – 50 mm (Standard mid-range plate) |
Varies by hand positioning (Typically thick components) |
0.5 – 20 mm (Thin-gauge sheet panels) |
|
Min Part Size |
50 × 50 mm (Vacuum absorption) |
~150 × 150 mm (Requires custom fixtures) |
Varies (Requires manual clamping) |
~200 × 200 mm (Requires sufficient surface area) |
|
Core Processing Focus |
Heavy slag removal, surface drawing, oxide scaling, and 360° edge rounding |
Light deburring, basic scratch removal, surface calibration |
Flexible spot-deburring for small batches |
Precision edge finishing, contour blending |
|
Material Capability |
Universal: Carbon steel, stainless steel, aluminum, copper, zinc plate, etc. |
Dedicated: Typically separated into steel-only or non-ferrous lines |
Flexible (Easy to swap discs manually) |
Sensitive materials: Aluminum, high-end thin stainless steel |
|
Investment & Consumable Cost |
Highly cost-effective, low energy consumption, standard open-market consumables |
Moderate entry pricing, expensive proprietary belt replacements |
Low initial cost, extremely high labor cost per part |
Premium price tag, proprietary flexible brush components |
Related Products & Solutions
-
ARMPRE’s plate deburring machine offers innovative, integrated, fully automatic plate deburring machines that are ISO and CE certified and suitable for all your needs.
-
We help our customers with an extensive steel deburring machine, ensuring unparalleled consistency with automated processes, robust engineering, and premium components delivering reliable performance.
-
Specializing in industrial wet deburring and metal finishing, ARMPRE wet deburring machines offer safe, cooled, and dust-free high-performance alloy precision deburring, edge rounding and finishing
-
Still searching for a professional wide belt sander for wood and metal? ARMPRE’s wide belt sanders, featuring electronically segmented sanding pads, precision calibration, and automatic deburring, can instantly boost your deburring efficiency.
1.Introduction to edge rounding machine?
2.Why Is edge rounding machine Important?
3.How Does edge rounding machineImprove Manufacturing?
4.Key Technologies Behind edge rounding machine
5.Applications and Industries
6. Benefits for Manufacturers
7.Factors to Consider Before Purchasing
8.Choosing the Right Finishing Solution-Armpre.
An edge rounding machine requires less maintenance Daily maintenance mainly includes checking abrasive belts, brushes, cleaning metal dust, and inspecting machine components. With proper operation and routine maintenance, the machine can maintain consistent edge finishing quality for long-term industrial production.
An edge rounding machine uses abrasive belts, rotary brushes, to remove sharp edges, burrs, and uneven surfaces from sheet metal parts. During processing, workpiece feed through the machine, creates consistent edge rounding and improves surface finishing quality.
Armpre can process various materials, including stainless steel, carbon steel, aluminum, and other metal sheets. ARMPRE provides solutions for different metal fabrication and finishing applications.
Edge rounding machines are widely used in industries that require smooth and safe metal edges, including sheet metal fabrication, laser cutting, stainless steel processing, industrial manufacturing, electrical cabinets, and metal component production.
Choosing the right machine model depends on several factors, including material type, part size, sheet thickness, required edge quality, production volume, and automation needs. ARMPRE can help analyze your application and recommend a suitable solution.
Yes. ARMPRE can customize edge rounding machines according to different production requirements. Our engineering team evaluates material type, part dimensions, and production volume to recommend a suitable edge finishing solution.
Deburring focuses mainly on removing sharp burrs after cutting processes. Edge rounding creating a consistent radius on metal edges while also removing burrs and improving edge safety. Edge rounding is commonly used when manufacturers require better surface quality, coating preparation, and consistent finishing results.
An edge rounding machine is an industrial metal finishing system designed to remove sharp edges, burrs, and uneven surfaces from sheet metal parts after cutting processes. It is commonly used for laser-cut parts, stainless steel components, and fabricated metal products to improve safety, surface quality, and production consistency.
