The Engineer’s Guide to Industrial Metal Brushing Machines

Traditional deburring processes in sheet metal fabrication and precision manufacturing are prone to risks like coating peeling and edge deformation. ARMPRE’s advanced automated deburring system may help eliminate these risks. This guide provides you with the fastest, simplest introduction to modern metal brushing machines, covering the structural physics, tool configuration, material suitability strategies, and operating parameters.

1. What Are the Kinematic Differences Between Brushing of Brushing and Wide-Belt Sanding?

While wide belt sanders and industrial metal brushing machines share similar mechanical principles, their impact on workpiece tolerances differs significantly.

Wide belt sanders apply linear grinding action through a flat abrasive belt. They effectively batch-calibrate deburring thickness, but pose risks of altering critical component dimensions and stripping protective zinc or galvanized layers from sheet metal edges. This makes them unsuitable for fine-edge finishing.

In contrast, the metal brushing machine employs a flexible rotating bristle that dynamically adapts to irregular contours. They can drill deep into internal cuts, cross-drilled holes, and complex kerfs, delivering you uniform, repeatable edge rounding without affecting the overall flatness or nominal thickness.

2. What Are the Multi-Head Configurations for Complex Burr Classifications of Metal Brushing Machine?

During processing, workpieces often present multiple types of surface or edge defects simultaneously. To achieve a flawless and precise metal surface finish, it requires integrating customized, modular brushing and sanding heads into your production line. Based on industry classifications for burr types, we recommend the following configuration:

Slag removal stage (level 3 burrs). By using a powerful sanding belt head or a heavy-duty slag-removal hammer module, it can eliminate heavy slag and dross of level 3, the solidified residue from plasma cutting, flame cutting, or high-power laser cutting.

Finishing stage (level 2 & level 1 burrs). After slag has been removed, you can apply a high-speed rotating disc brush or roller brush module to remove feathery burrs (Level 2) and micro-burrs (Level 1) from the material surface. Then, all the finished parts are completely safe to handle, with perfectly rounded edges.

3. How to Select Tooling Geometries: Roller Brushes vs. Rotary Discs from the Metal Brushing Machine?

The choice between roller brushes and rotary discs depends on your workpiece geometry.

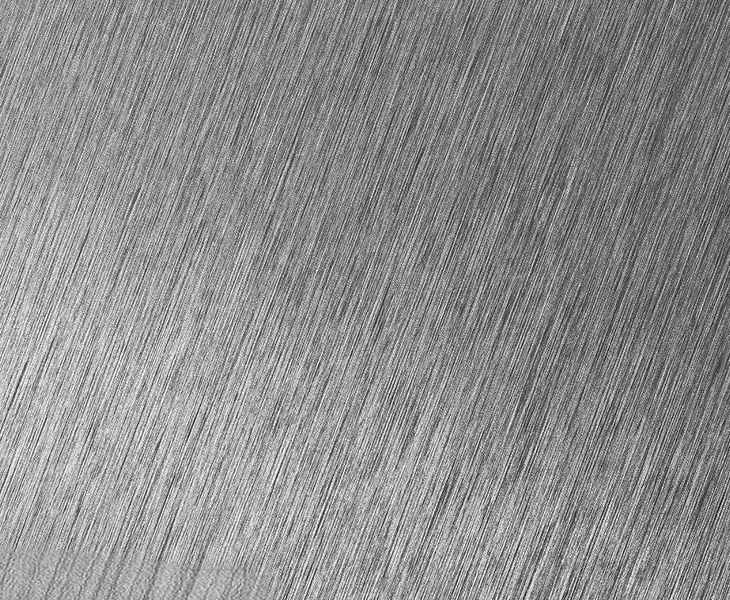

Roller brushes are ideal for flat materials, like stainless steel or aluminum sheets. Applying linear contact pressure (parallel or perpendicular to the conveyor path), the roller brushes deliver you rapid, efficient linear edge rounding. It makes rollers are best for creating directional surface finishes such as linear grain patterns and brush marks.

Rotary discs, conversely, typically feature a design incorporating multiple rotating heads, designed for complex parts. Their multiple rotating heads move along overlapping, multi-axis paths, providing you with 360-degree brushing coverage and allowing the tools to reach deep into internal cutouts, slots, and punched holes. So the rotary discs are the right choice for your nested parts or workpieces requiring three-dimensional edge rounding.

4. How to Prevent Material Cross-Contamination and Choose Filament Compatibility With a Metal Brushing Machine?

When processing different materials on the same metal brushing machine, using the wrong brushes may cause severe damage. The carbon steel particles may be embedded in stainless steel or aluminum, leading to galvanic corrosion, surface oxidation, and rusting. So you need to apply material-specific brush segregation. And engineers must strictly separate brushes by material type.

When processing carbon steels, you are better off choosing high-strength carbon steel wire brushes. Conversely, when dealing with stainless steel & aluminum, you need to use lighter-duty brushes to prevent iron particle embedding. For non-ferrous metals, you’d better switch to stainless steel wires (e.g., non-corrosive ROF/ROH grades) or nylon bristles embedded with SiC or ceramic abrasives.

All ARMPRE metal brushing machines feature an advanced modular brush quick-change system, designed to assist you in strictly isolating incompatible materials and maintaining surface purity.

5. How to Eliminate Laser Oxide Layers to Guarantee Coating Adhesion With a Metal Brushing Machine?

Oxide layers compromise coating adhesion. Oxygen laser cutting often leaves a brittle, glass-like oxide layer on your parts’ edges. The layers may prevent coatings from bonding properly and lead to surface premature peeling and localized corrosion.

In addition to providing a foundational deburring system, ARMPRE’s metal brushing machine offers a specialized steel wire brushing module. By applying intense mechanical friction to laser-cut edges, our brushing machine effectively removes the brittle oxide layer.

This friction generates high-velocity impact forces that fracture the surface, creating a microscopic “anchor profile” on the base metal that ensures maximum coating adhesion. It delivers you maximum coating adhesion and long-lasting protection.

6. What Are the Feed Systems and Bed Width Specifications of the Metal Brushing Machine?

Match the machine to your workpiece size, so the right machine width depends on your part dimensions. Different models of metal brushing machines process different dimensions and material thickness of your workpieces.

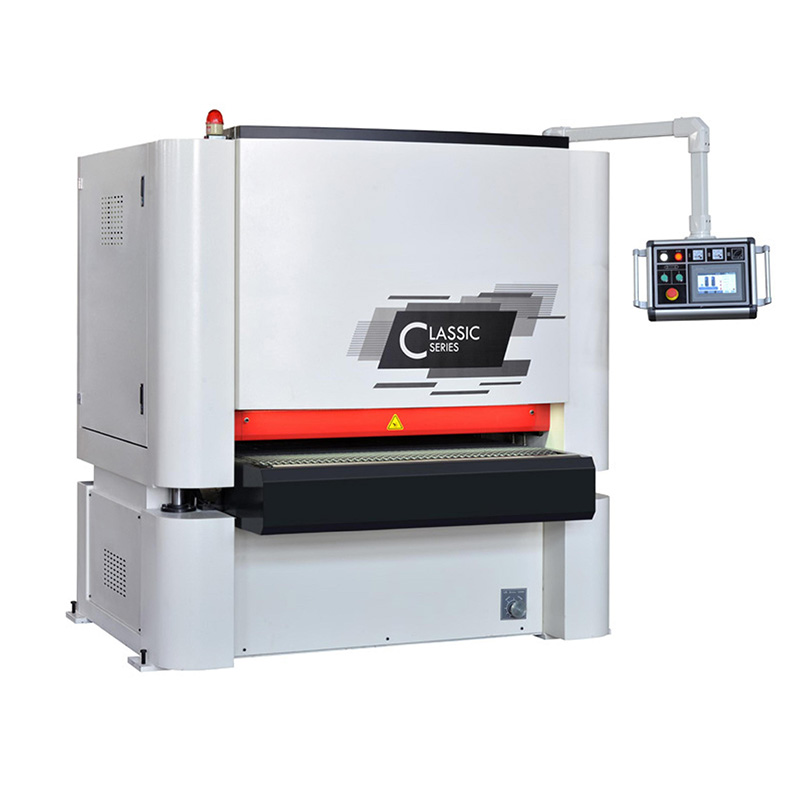

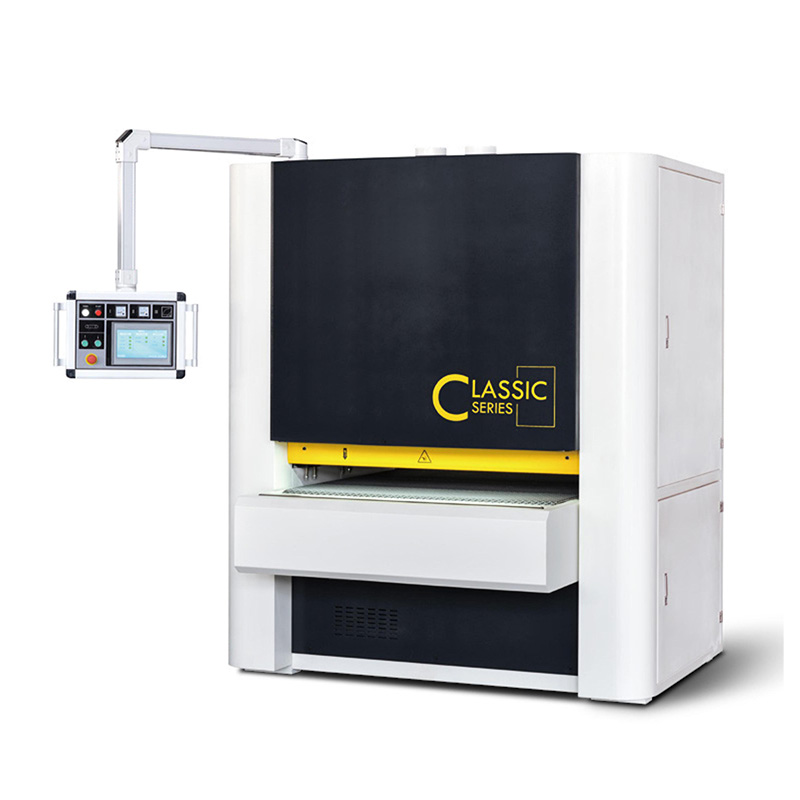

The 300mm – 630mm models are ideal for small, precision parts. 1350mm – 1600mm heavy-duty models are specifically designed for large-format industrial sheets. We offer various thicknesses and feed systems for stable processing for any gauge.

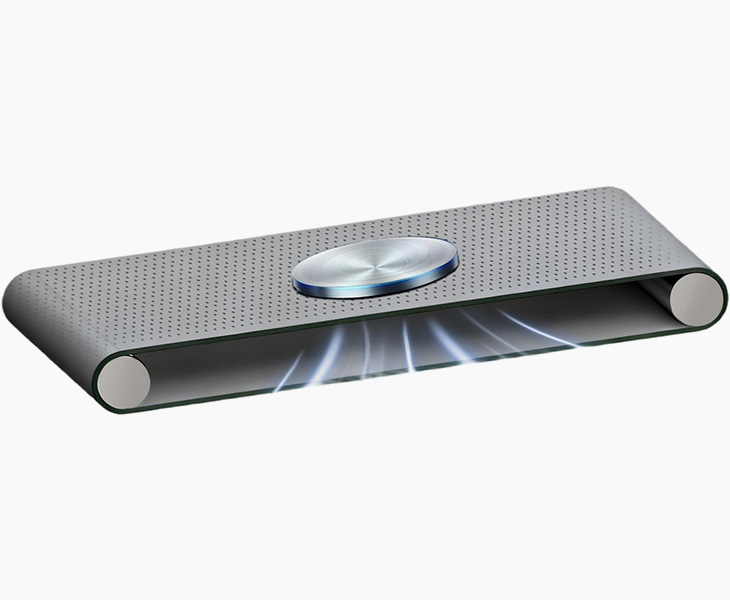

So your workpiece thickness determines the feed system configuration. For thick plates up to 75mm, our pressure rollers maintain exceptional stability, even under heavy loads. For thin, lightweight sheets or small nested parts, our perforated conveyor belt with vacuum bed can securely anchor parts, preventing sliding or dislodging during the high-pressure brushing process.

7. What Is the Quantifiable ROI and Workflow Automation of Your Metal Brushing Machine?

By cutting labor costs. From manual polishing to fully automated metal brushing machines or production lines, you can achieve a quantifiable return on investment. A single fully automated metal brushing machine replaces three to five skilled manual operators, significantly reducing your labor costs. Furthermore, it eliminates the quality inconsistencies from manual polishing.

The metal brushing system guarantees consistent surface and edge finishes across every batch, with precision down to a R2.0 mm radius. So it can drastically lower the parts rejection rate and reduce scrap costs.

The automation also frees your operators from dust-heavy, physically demanding, and inefficient manual work, helping you build a more sustainable, eco-friendly workshop.
