The Engineer’s Guide to Industrial Steel Tube Cutting Machine

In metal fabrication, automotive exhaust pipes, precision manufacturing and many fields, traditional tube cutting processes have risks such as thermal deformation, heavy burr formation and material waste from excessive scrap. ARMPRE’s advanced automated tube cutting system helps eliminate these risks. This guide will introduce you automatic steel tube cutting machines which covers tool and laser configurations, material suitability strategies, operating parameters and so on.

1.What Are the Kinematic Differences Between Cold Sawing and Fiber Laser of Steel Tube CuttingMachine?

Although both cold saws and fiber laser tube cutting machines ultimately aim to cut profiles, their kinematic mechanisms are quite different.

A cold saw uses a circular blade with rigid carbide tips to perform mechanical rotary cutting. It can produce fast, accurate straight cuts, but there is a risk of leaving physical clamping marks on ultra-thin walls. It also handles only straight cuts or simple miters, which makes it unsuitable for complex geometric contours.

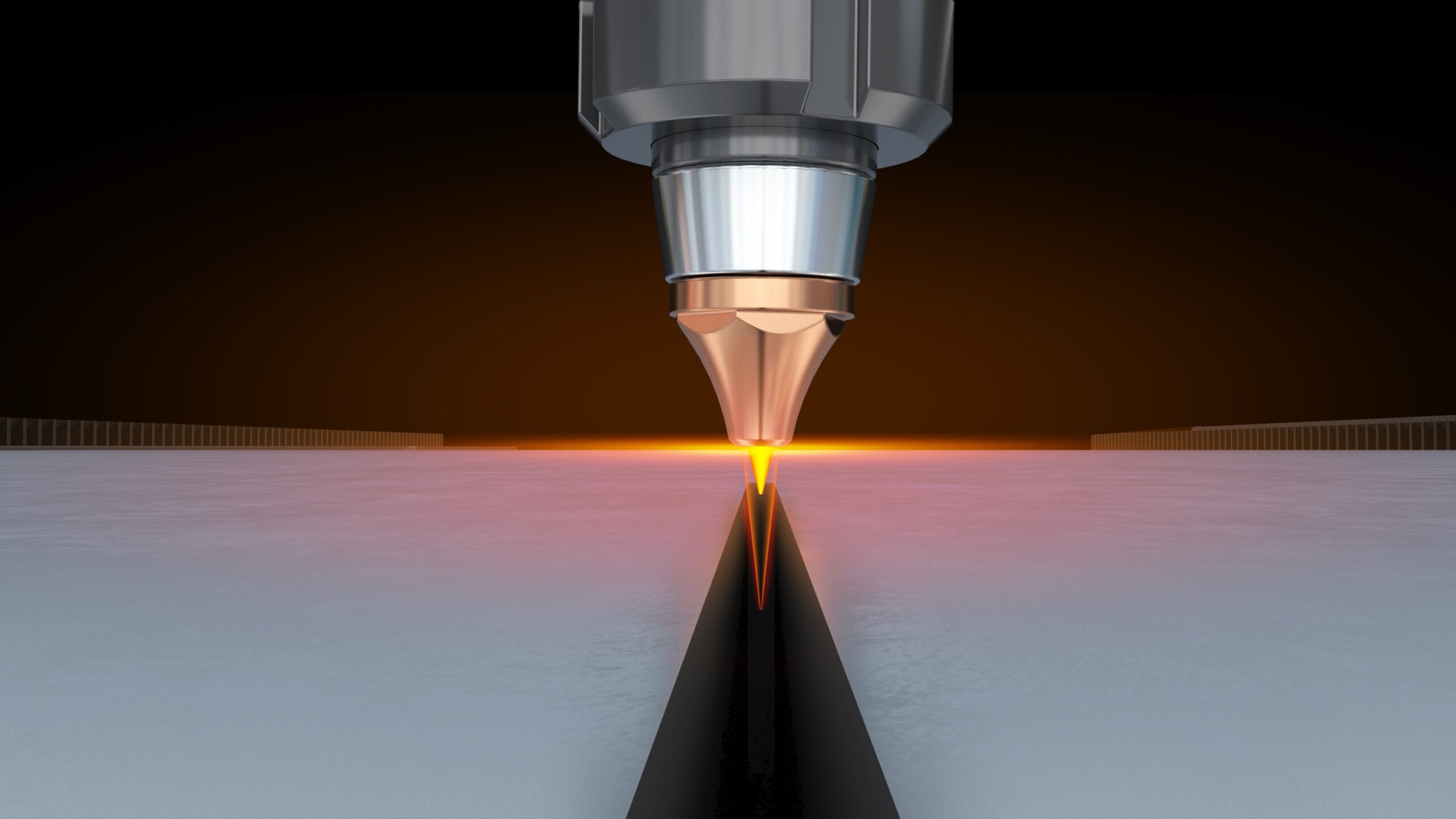

In contrast, a fiber laser tube cutting machine uses a non-contact, high-density thermal energy beam that dynamically adapts to irregular cross-sections. It can machine complex patterns and delivers uniform and repeatable precision without affecting mechanical integrity or causing wall deformation.

2.What Are the Multi-Chuck Configurations for Heavy-Duty and Zero-Tailing Challenges in aSteel Tube Cutting Machine?

During processing, long structural tubes often experience both gravity-induced sagging and wall thickness slippage at the same time. To achieve perfect, high-precision metal cutting and minimize scrap, a customized modular pneumatic chuck system needs to be integrated into your steel tube cutting machine line. Based on industry classifications for tube handling types, the following configurations are recommended:

Dual-Chuck Station

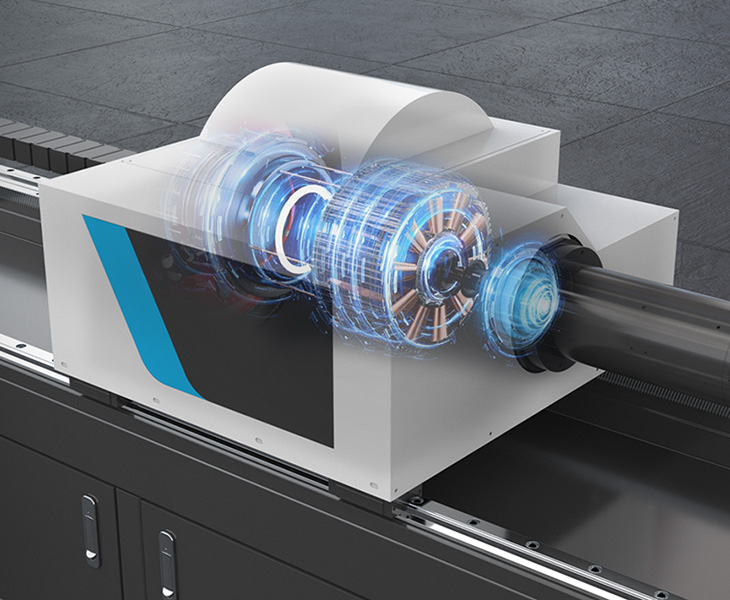

By using synchronized front and rear pneumatic chuck modules, this entry-level steel tube cutting machine configuration securely clamps and transports standard round or square tubes. This enables high-speed processing for general manufacturing, but leaves a traditional scrap section at the end of the profile.

Triple / Quad-Chuck Station

After loading raw material into a heavy-duty steel tube cutting machine, the multi-chuck system provides continuous interlocking feed traction. By allowing the laser head to cut between tightly spaced chuck boundaries, tube sway on heavy profiles is eliminated, and material waste is reduced to an industry-leading 40 mm—directly saving you production costs.

3.How to Select Cutting Geometries: 2D Flying Laser Heads vs. 3D Beveling Heads?

The choice between a 2D flying laser head and a 3D beveling module on your steel tube cutting machine depends entirely on your structural assembly geometry.

2D flying laser heads are ideal for standard perpendicular cutting, such as square or round tubes used in furniture manufacturing. This steel tube cutting machine configuration uses a fast, perpendicular beam path relative to the tube surface, achieving fast and efficient straight cuts. Therefore, 2D flying laser heads are best suited for high-volume, straight-cut parts that require short cycle times.

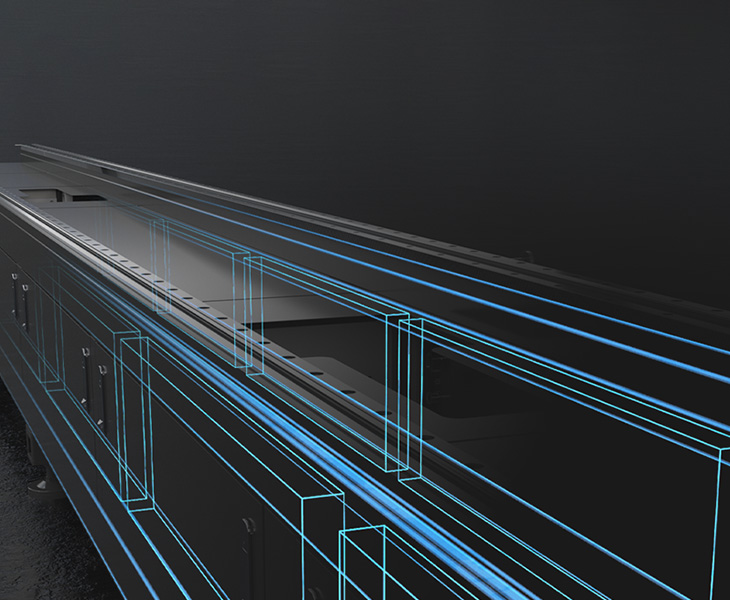

3D beveling heads, in contrast, typically feature a multi-axis tilting mechanism. Their rotating optics move along overlapping paths, providing up to 45 degrees of cutting angle coverage and allowing the beam to create precise weld-prep bevels, saddle cuts, and mitered joints. As a result, for nested structural frames or workpieces that require seamless weld alignment, the 3D beveling steel tube cutting machine is the ideal choice.

4.How to Prevent Material Cross-Contamination and Choose Chuck Jaw CompatibilityWithSteel Tube Cutting Machine?

When processing different materials on the same steel tube cutting machine, using the wrong jaws can cause serious surface damage. Carbon steel particles from standard iron jaws can embed themselves into stainless steel or aluminum profiles, leading to galvanic corrosion, surface oxidation and rapid rusting. That’s why you need material-specific tooling on your steel tube cutting machine.

When machining structural carbon steel, high-strength hardened steel chuck jaws are the best choice for maximum clamping force. In contrast, when processing polished steel and aluminum, you need specialized non-marking jaws to prevent iron particle embedment. For these non-ferrous metals, it’s best to switch to nylon inserts, polymer-coated jaws or copper pads on the machine chuck.

All ARMPRE steel tube cutting machines come with an advanced modular jaw quick-change system, designed to help you strictly isolate incompatible materials and maintain tube surface cleanliness.

5.How to Eliminate Internal Spatter Layers to Guarantee Clean Tube Fluid PathsUsing Steel Tube Cutting Machine?

Slag and internal spatter can affect the fluid dynamics performance and sanitary safety of industrial pipes. High-temperature laser processing without proper management often leaves brittle, adhered spatter residue on the inner diameter of parts. This residue can block normal fluid flow, contaminate the piping system or cause localized corrosion in medical and food-grade applications.

In addition to offering an optimized gas assist system, ARMPRE’s dedicated steel tube cutting machines integrate internal spatter suction or anti-spatter oil injection modules. By applying a local protective barrier or performing a mechanical internal flush during cutting, the machine effectively prevents slag from sticking to the tube wall.

This configuration disrupts the potential adhesion path on the steel tube cutting machine, ensuring an extremely smooth microscopic profile on the inner base material surface. It maximizes fluid path integrity and provides long-lasting protection.

6.What Are the Automated Loading Systems and Bundle Capacity Specificationsof theSteel Tube Cutting Machine?

Choosing the right steel tube cutting machine means matching it to your raw material bundle size, so the right loading mechanism depends on your shop layout and production volume. Different models of automatic loaders can handle different weight capacities and bundle dimensions.

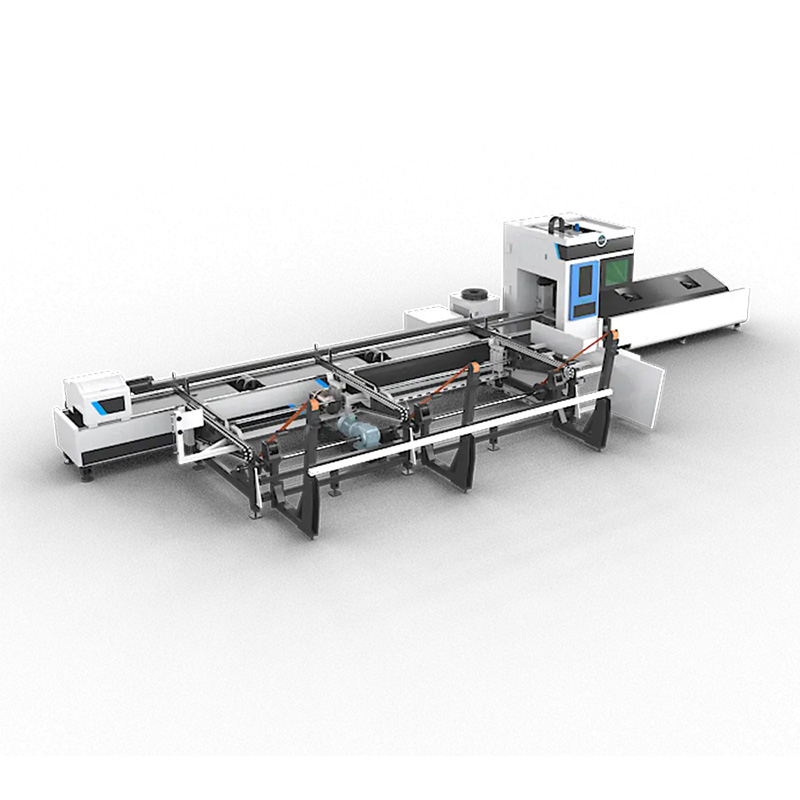

An automatic chain loader works well for small to medium batches or when tube shapes alternate. A heavy-duty top-loading bundle system provides continuous unattended material separation for your steel tube cutting machine. We offer a range of bundle thickness and feed designs to ensure stable processing of any tube size.

So the weight and shape of your raw material tubes determine the feeding system configuration for your steel tube cutting machine. For heavy structural profiles up to 300 mm in diameter, machines maintain excellent stability even during rapid indexing. For thin, lightweight profiles or small precision tubes as small as 10 mm in diameter, the synchronized servo-driven feed rollers securely hold the workpiece, preventing rotation lag or slippage during high-speed clamping.

7.What Is the Quantifiable ROI and Workflow Automation ofSteel Tube Cutting Machine?

By lowering labor costs and eliminating secondary processing steps, switching from manual band saw cutting to a fully automatic tube laser cutting line helps you achieve a measurable return on investment quickly. One fully automatic tube laser cutting line can replace three to five manual sawing and deburring stations, significantly reducing labor costs. It also eliminates dimensional inconsistencies caused by manual measurement errors.

An automatic tube cutting system ensures consistent dimensional accuracy and edge quality across every batch, with length tolerances as tight as ±0.1 mm. As a result, it greatly reduces part rejection rates and scrap costs.

Automation also frees your operators from labor-intensive, physically demanding, and dangerous manual handling tasks, helping you build a more sustainable, cleaner, and higher-output production shop.
