Industrial Metal Linisher Built for Stable Finishing Performance
- Vibration-Free: Heavy-welded steel chassis eliminates high-frequency vibration.
- Secure Workholding: High-vacuum conveyor belt holds small parts firmly.
- Uniform Grinding: Cast-iron heads ensure consistent thickness control.
- Longer Belt Life: Dynamically balanced rollers prevent localized wear.
- Smart Control: Siemens PLC touchscreen for easy parameter adjustment.
- Operator Safety: CE & OSHA-compliant enclosures.
Achieve Uniform Edge Rounding and Smooth Surface Finishing
Traditional manual finishing brings you high labor costs and inconsistent quality. All your workshop challenges can be solved if you replace it with our automated metal linisher.
- Maximum Structural Stability
Built on a heavy steel frame with cast-iron grinding heads, our metal linishing machine effectively absorbs mechanical vibrations, delivering you flawless, repeatable No. 4 satin and hairline finishes.
- Powerful Vacuum Conveyor for Small Parts
Driven by a powerful suction fan, our high-vacuum conveyor firmly secures small laser-cut parts onto the belts, even down to 50 * 50mm, without custom fixtures, part slippage, or costly line jams.
- Flexible Configurations
Combining wide abrasive belts for aggressive slag removal with vertical brushes for uniform edge rounding, the linisher machine ensures your safety and maximum throughput.
Metal Linisher Models by Working Width and Configuration
Compact and highly efficient, it delivers precision processing of narrow parts and small laser-cut batches with low operational overhead.
Engineered for diverse commercial fabrication, it offers a perfect balance of wide-belt grinding capacity and versatile multi-head configurations.
Heavy-duty and maximum-width broad-belt type, it ensures you continuous high-volume production for heavy industrial steel plates with absolute uniformity.
Optional Accessories for Customized Finishing Requirements
Why Choose ARMPRE
Engineering excellence and turnkey solutions designed to optimize your production efficiency.
Send us your workpiece; we deliver high-precision sample parts for your evaluation.
Join our global distribution networkand, unlock industrial-grade growth.
Expert engineering assistance from pre-sale selection to on-site commissioning.
Cloud-based troubleshooting and remote software updates for zero downtime.
Genuine replacement parts and custom tooling shipped quickly to secure production.
Access OEE analysis, cycle time estimates, and tailored production solutions.

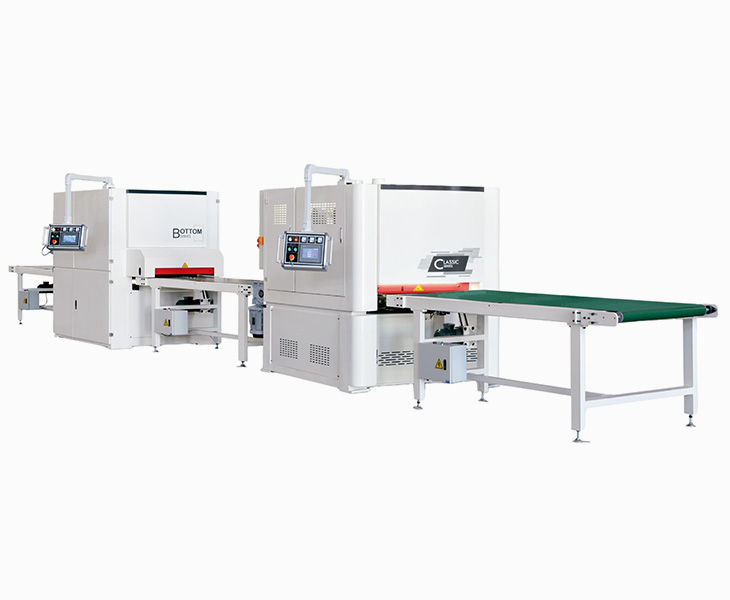

Rigid Structure for Better Metal Linishing Quality
The lightweight, bolted frames flex and vibrate under high-speed sanding, causing chatter marks. To solve this problem, our metal linisher uses massive, stress-relieved welded steel chassis and heavy cast-iron grinding heads.
Absorbing vibrations, the linishing machine ensures you flawless, and repeatable No. 4 satin finishes with absolute thickness uniformity.

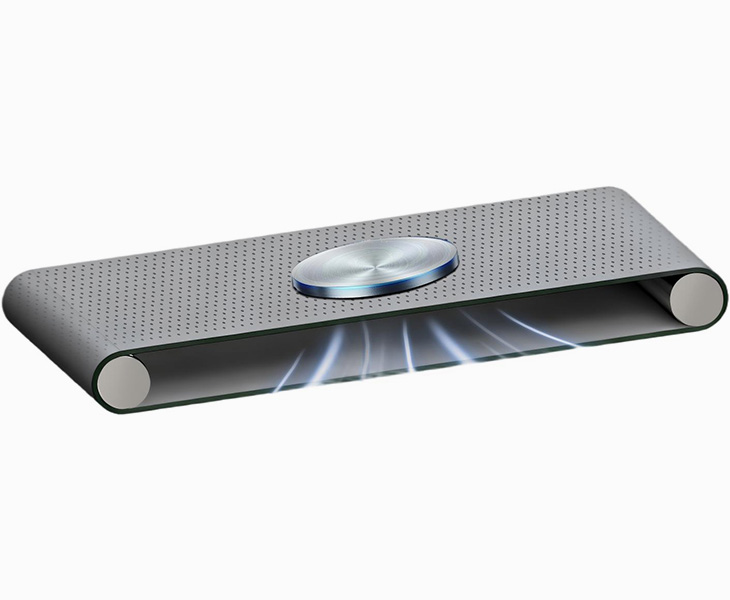

Secure Small-Part Processing: Integrated Vacuum Hold-Down
Traditional linishers often cause part slippage, torn belts, and dangerous jams when processing narrow, small, or nested laser-cut parts. With a high-vacuum conveyor, our linishing machine delivers high-pressure suction, guaranteeing you absolute stability during high-speed grinding with zero slippage. Even though you are fabricating expensive, time-consuming custom workholding jigs, they run smoothly and stably.

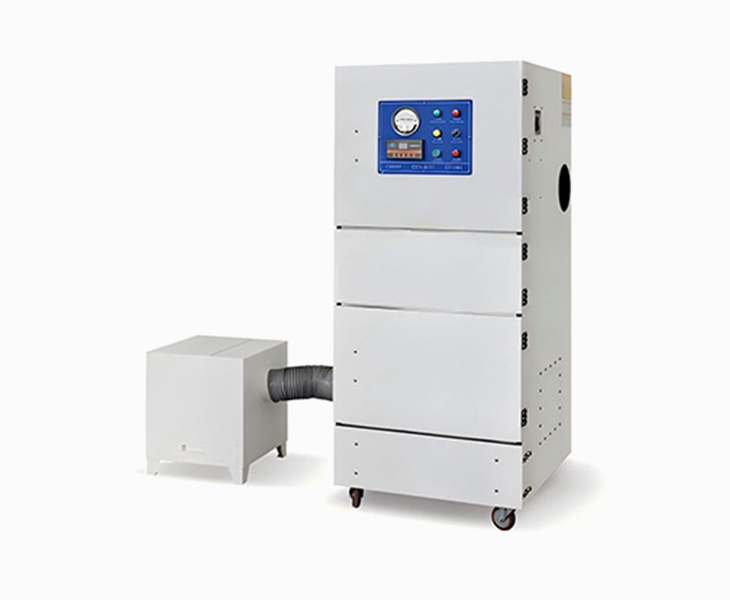

Safe Reactive Metal Processing: Engineered Wet Extraction
Aluminum or titanium dry linishing creates explosive dust risks and warps thin sheets. Spraying coolant directly onto the cutting zone, our wet linisher suppresses dangerous airborne metallic dust at the source.
The continuous rinsing keeps your thin-gauge plates cool from thermal warping and flushes away fine metal particulates. So your belt life is 2.5 times extended.
Machine Working Video and Real Processing Examples
Technical Specifications Comparison
About ARMPRE Metal Finishing Solutions
- Characteristics Key Advantages
- Exhibition Gallery
- Factory Gallery
| Characteristics | Values |
| Working width available | 30″/800 mm-40″/1000 mm-50″/1300 mm-60″/1600 mm |
| Min.Working length | 2”×2″/50 mmx50 mm |
| Working thickness | 0-4″/0-100 mm |
| Working materials | carbon steel, stainless steel , aluminum, copper, titanium |
| Max speed | 195 in/min/5000 mm/min |
| Voltage | 480V/3 ph |
| Frequency | 60 Hz |
| Working table structure | Vacuum/Magnetic as Standard |
| Controller | PLC |
| Sand Belt Mesh | #60/#80/#120/#180/#240/#320 |
| Dust collector | Dry/Wet Dust collector |
The key differences are structural rigidity and surface precision.
For broad, perfectly flat surfaces, the standard belt grinder lacks alignment and frame dampening. In contrast, the heavy-duty metal linisher features:
- Massive Cast-Iron Heads
Backed by dual-supported spindle assemblies, the metal linisher eliminates chatter and ensures you uniform stock removal.
- Wide-Belt Stability
With pneumatic tracking systems, the linisher delivers you flawless, parallel hairline or satin texturing across the entire material width.
Yes, absolutely. However, you need to process it correctly to prevent cross-contamination and safety hazards. When running mixed materials, linishing machine can eliminate the two biggest risks:
- Zero Cross-Contamination
Flushing away carbon dust, our wet linisher prevents galvanic corrosion on your stainless steel parts.
- Explosion-Proof Safety
Safely suppressing reactive aluminum dust, the filtration and wet extraction keep your shop 100% OSHA and CE compliant.
With a precision multi-head setup, our metal linisher tackles burrs and finishing separately.
- The Roller
Removing heavy laser slag and upward burrs first.
- The Brushes
The vertical brushes apply multi-directional pressure to sweep sharp contours to round the edges. So your laser-cut parts can be edge-rounded without scratching or piercing.
For seamless global deployment, we have control logic with Siemens PLC modules. For power and switching, we choose Schneider Electric contactors and switchgear. All the electrical components ensure your replacement parts are locally available and troubleshoot without delay.
Down to 50 × 50 mm. Our vacuum conveyor system can firmly secure small independent parts directly to the belt. So you do need specialized magnetic tracks or custom hold-down fixtures.
